LED SL Panel 100W bi-color
Есть четыре основные технологии освещения: люминесцентная, светодиодная, с традиционной лампой накаливания и металлогалогенная. С точки зрения ARRI, люминесцентные светильники уже мертвы. ARRI переходит на светодиоды из-за эффективности: светодиодное оборудование на 50% экономичнее, чем люминесцентные светильники, у них более продолжительный срок службы и цветовые возможности. Поэтому смысла производить люминесцентный свет мы не видим, хотя традиционные и металлогаллогенные лампы еще производятся — эти технологии важны для кинопроизводства.
LED SL Panel 100W bi-color
| Param | Value |
|---|---|
| Max. Capacity Voltage Current Color Temp. Adjustable CRI TLCI Dimming Control Signal DMX Channel LED Life Approx. Stirrup Class / IP Rating Max. Surface Temp. Max. Ambient Temp. Min. Distance to Illuminated Object Min. Distance to Flammable Object Operating Range Weight (Lamphead) | 100W 18 - 28V DC 4A @24V 2700K - 5600K >95 >95 0 - 100% DMX 512 2 30,000Hrs Ø16mm (5/8 in.) Socket 1 / IP 21 60 ºC 45 ºC 1 m 0.5 m +90º ~ 0º ~ -90º 4.6 kg |
LED Fresnel 250
| Capacity Voltage Frequency Current Fresnel Lens Color Temp. CRI > TLCI > Beam Angle Dimming Range LED Life Approx. M.O. / P.O. Stirrup Class / IP Rating Max. Surface Temp. Max. Ambient Temp. Min. Distance to Illuminated Object Min. Distance to Flammable Object Operating Range Weight (Lamphead) | 250W 95 - 265V AC 50Hz / 60Hz 2.6A - 0.9A Ø175mm (6-7/8 in.) 5600K (Daylight) 95 95 15° - 50° 0 - 100% 30,000 Hrs Ø28mm (1-1/8 in.) Spigot 1 / IP 20 70 ºC 45 ºC 1 m 0.5 m +90º ~ 0º ~ -90º 10.0 kg (M.O.) 10.5 kg (P.O.) |
|---|---|
LED Fresnel 150
| param | value |
|---|---|
| Capacity Voltage Frequency Current Fresnel Lens Color Temp. CRI > TLCI > Beam Angle Dimming Range LED Life Approx. M.O. / P.O. Stirrup Class / IP Rating Max. Surface Temp. Max. Ambient Temp. Min. Distance to Illuminated Object Min. Distance to Flammable Object Operating Range Weight (Lamphead) | 150W 95 - 265V AC 50Hz / 60Hz 1.6A - 0.6A Ø130mm (5-1/8 in.) 5600K (Daylight) 95 95 15° - 50° 0 - 100% 30,000 Hrs Ø28mm (1-1/8 in.) Spigot 1 / IP 20 70 ºC 45 ºC 1 m 0.5 m +90º ~ 0º ~ -90º 6.5 kg (M.O.) 7.0 kg (P.O.) |
LED Soft Panel 200 (Yoke Mount)
| param | value |
|---|---|
| Capacity Voltage Frequency Current Color Temp. Adjustable CRI TLCI > 0 - 100% Control Signal DMX Channel LED Life Approx. M.O. / P.O. Stirrup Class / IP Rating Max. Surface Temp. Max. Ambient Temp. Operating Range Weight (Lamphead) | 200W 95 - 265V AC 22 - 36V DC 50Hz / 60Hz 1A @220V 50Hz AC 2A @110V 60Hz AC 7A @30V DC 2700K - 6000K 95 95 0 - 100% DMX 512 2 30,000 Hrs Ø28mm (1-1/8 in.) Spigot 1 / IP 20 70 ºC 45 ºC +90º ~ 0º ~ -90º 15.0 kg (M.O.) 17.0 kg (P.O.) |
LED CCT Panel 400W (Bi-Color)
| param | value |
|---|---|
| Max. Capacity Voltage Current Color Temp. Adjustable CRI TLCI Dimming Control Signal DMX Channel LED Life Approx. Stirrup Class / IP Rating Max. Surface Temp. Max. Ambient Temp. Min. Distance to Illuminated Object Min. Distance to Flammable Object Operating Range Weight (Lamphead) | 400W 30 - 48V DC 8.7A @ 46V 2700K - 6000K >95 >95 0 - 100% DMX 512 2 30,000 Hrs Ø28mm (1-1/8 in.) Spigot 1 / IP 20 60 ºC 45 ºC 1 m 0.5 m +90º ~ 0º ~ -90º 10.0 kg |

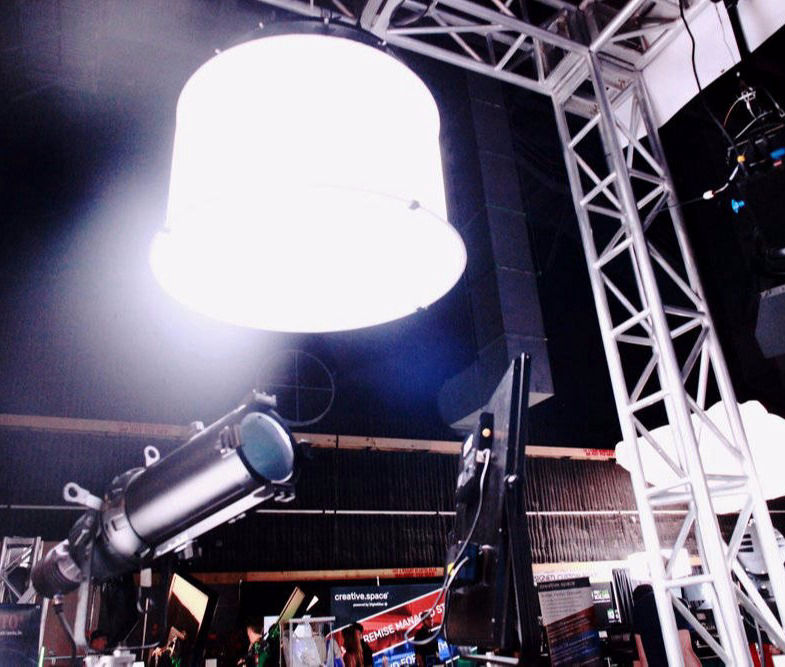

LED Space Light (Bi-Color)
| param | value |
|---|---|
| Capacity Voltage Current Color Temp. Adjustable CRI TLCI Dimming Control Signal DMX Channel APP Control Wifi Function will coming soon # LED Life Approx. Class / IP Rating Max. Surface Temp. Max. Ambient Temp. Min. Distance to Illuminated Object Min. Distance to Flammable Object Weight (Lamphead) Weight (with Stirrup) | 950W 180V - 250V AC or 90V - 125V AC 4.3A @220V AC 8.6A @110V AC 2700K - 6000K >95 >95 0 - 100% DMX 512 2 30,000 Hrs 1 / IP 20 60 ºC 45 ºC 1 m 0.5 m 18.0 kg 22.0 kg |

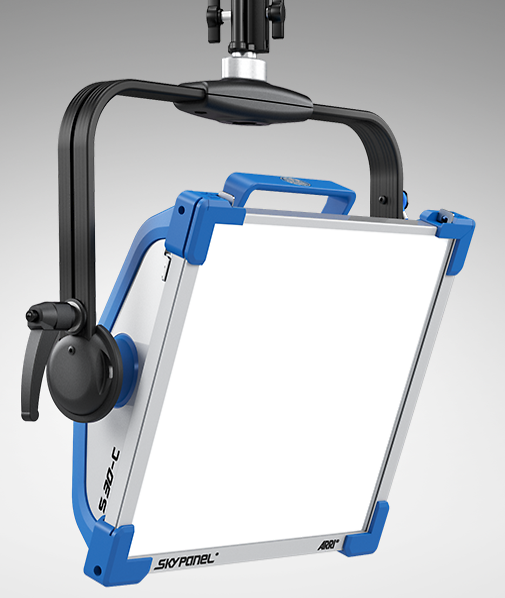

SkyPanel S30-C
| Param Value |
|---|
| SeriesSkyPanel
ModelS30-C Optical SystemSoft Diffusion Panel Light Aperture / Lens Diameter in mm 355 x 300 mm Light Aperture / Lens Diameter in inch 14.0 x 11.8" Beam Angle 115° (Half Peak Angle) Weight in kg net*Manual Version: approx. 7 kg Pole Operated Version: approx. 9 kg Weight in kg packed*Manual Version: approx. 14 kg Pole Operated Version: approx. 16 kg Measurements (HxWxL) incl. Pin in mm *Manual Version: 499 x 507 x 133 mm Pole Operated Version: 567 x 504 x 133 mm Measurements (HxWxL) excl. Pin in mm*Manual Version: 426 x 507 x 133 mm Pole Operated Version: 452 x 504 x 133 mm Measurements (HxWxL) incl. Pin in inch*Manual Version: 19.6 x 19.9 x 5.2" Pole Operated Version: 22.3 x 19.8 x 5.2" Measurements (HxWxL) excl. Pin in inch*Manual Version: 16.8 x 19.9 x 5.2" Pole Operated Version: 17.8 x 19.8 x 5.2" Measurements (HxWxL) Packed size in mm* 470 x 665 x 300 mm Measurements (HxWxL) Packed size in inch* 18.5 x 26.2 x 11.8" HandlingAluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt Mounting16 mm / 28 mm Combo Pin (Baby 5/8" / Junior 1-1/8" Combo.Pin) / 28 mm Spigot (Junior Pin) Tilt Angle +/- 90° Lamphead Voltage Input 48 V DC Power Consumption 200 W Nominal, 220 W Maximum Lamphead Power Connection Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive) Battery Connector Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive) Battery DC Voltage Range 23 to 36 V DC Battery Mode Light Output 100 % of total output White Light 2,800 K to 10,000 K continuously variable correlated color temperature Colored LightFull RGB+W Color Gamut with Hue and Saturation Control Color Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) Color RenditionCRI Average > 95, TLCI Average > 91 Green-Magenta AdjustmentContinuously adjustable (Full Minusgreen to Full Plusgreen) Dimming0 to 100 % continuous Contro lOn-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art- Net Wireless Control Not integrated, via SkyLink Remote Device Management (RDM)DMX Setup, Hour Counter and Standard RDM Commands Software / Mini-USB InterfaceEthernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software Upgrade via flash drive Housing ColorBlue/Silver, Black Ambient Temperature Operation -20 to +45° C (-4 to +113° F) Protection Class / IP RatingIII / IP 20 Estimated LED Lifetime (L70)50,000 hours Estimated Color Shift Over Lifetime (CCT)+/- 5 % Certifications CE, CB, ENEC, cNRTLus, FCC, PSE Power Supply Unit S30 PSU Power Supply Input Range 110 to 240 V ~, 50/60 Hz Power Supply Output Range 48 V DC Power Input Connectionpower CON TRUE1 (Bare Ends / Schuko / Edison) Power Output Connection Female 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through) Weight in kgapprox. 2 kg |

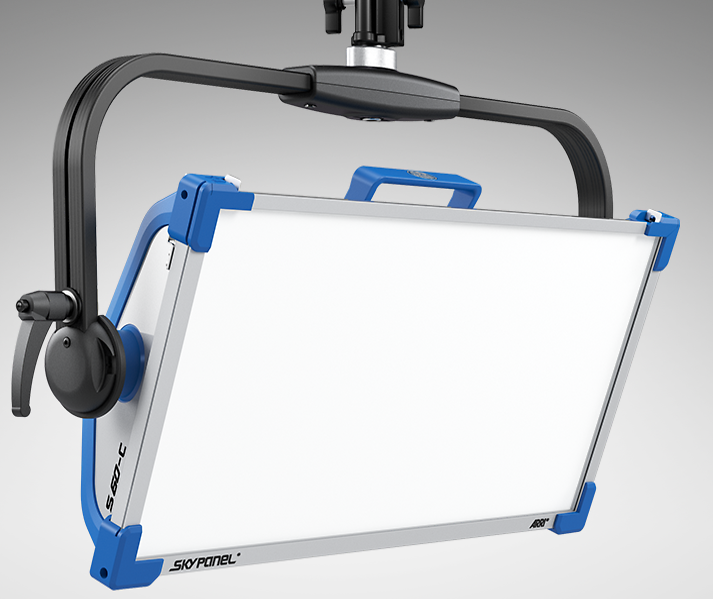

SkyPanel S60-C
| Param Value |
|---|
| SeriesSkyPanel
ModelS60-C Optical SystemSoft Diffusion Panel Light Aperture / Lens Diameter in mm 645 x 300 mm Beam Angle 115° (Half Peak Angle) Weight in kg net*Manual Version: approx. 13 kg Pole Operated Version: approx. 14 kg Weight in kg packed*Manual Version: approx. 21 kg Pole Operated Version: approx. 22 kg Measurements (HxWxL) incl. Pin in mm *Manual Version: 566 x 826 x 133 mm Pole Operated Version: 567 x 796 x 133 mm Measurements (HxWxL) excl. Pin in mm *Manual Version: 433 x 826 x 133 mm Pole Operated Version: 452 x 796 x 133 mm Measurements (HxWxL) Packed size in mm *470 x 860 x 300 mm HandlingAluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt Mounting28 mm Spigot (Junior Pin) Tilt Angle +/- 90° Lamphead Voltage Input 48 V DC Power Consumption 420 W Nominal, 450 W Maximum Lamphead Power Connection Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive) Battery Connector Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive) Battery DC Voltage Range 23 to 36 V DC Battery Mode Light Output 50 % of total output White Light 2,800 K to 10,000 K continuously variable correlated color temperature Colored Light Full RGB+W Color Gamut with Hue and Saturation Control Color Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) Color RenditionCRI Average > 95, TLCI Average > 90 Green-Magenta AdjustmentContinuously adjustable (Full Minusgreen to Full Plusgreen) Dimming 0 to 100 % continuous ControlOn-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net Wireless Control Not integrated, via SkyLink Ambient Temperature Operation -20 to +45° C (-4 to +113° F) Protection Class / IP RatingIII / IP 20 Estimated LED Lifetime (L70)50,000 hours Estimated Color Shift Over Lifetime (CCT)+/- 5 % CertificationsCE, CB, ENEC, cNRTLus, FCC, PSE Power Supply Input Range 110 to 240 V ~, 50/60 Hz Power Supply Output Range 48 V DC Power Input Connectionpower CON TRUE1 (Bare Ends / Schuko / Edison) Power Output Connection Female 3-Pin XLR to 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through) Weight in kgapprox. 4 kg |

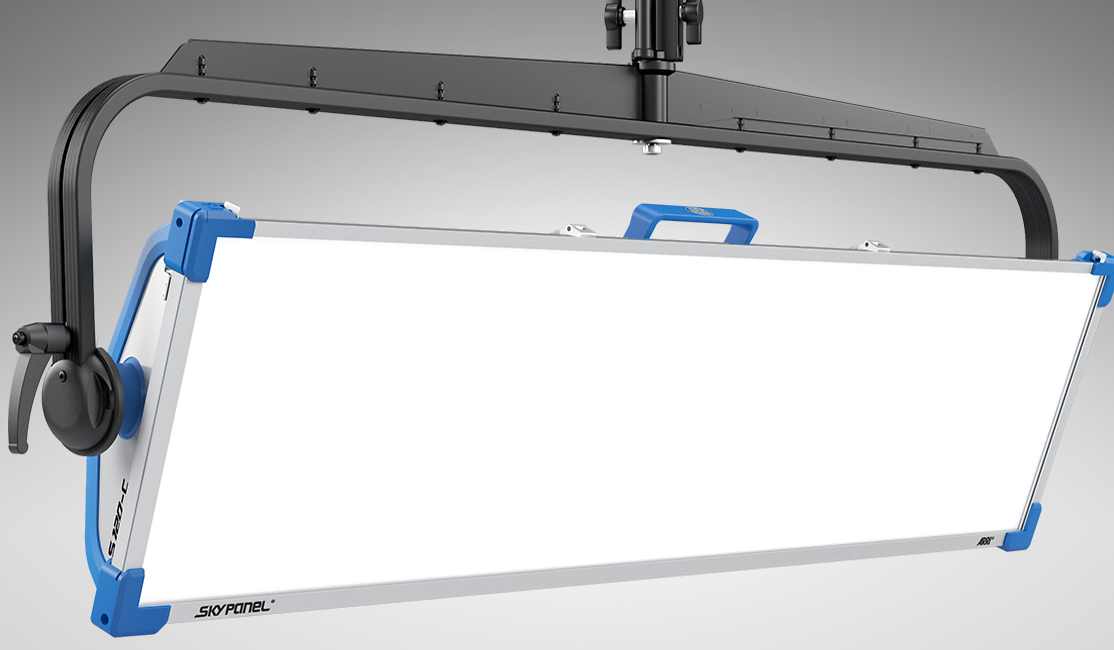

SkyPanel S120-C
| Param Value |
|---|
| SeriesSkyPanel
ModelS120-C Optical SystemSoft Diffusion Panel Light Aperture / Lens Diameter in mm 1290 x 300 mm Beam Angle 110° (Half Peak Angle) Weight in kg net*Manual Version: approx. 16 kg Pole Operated Version: approx. 19 kg Center Mount Version approx.: 14 kg Weight in kg packed*Manual Version: approx. 26 kg Pole Operated Version: approx. 29 kg Center Mount Version approx.: 24 kg Measurements (HxWxL) incl. Pin in mm *Manual Version: 588 x 1467 x 133 mm Pole Operated Version: 615 x 1439 x 133 mm Measurements (HxWxL) excl. Pin in mm *Manual Version: 473 x 1467 x 133 mm Pole Operated Version: 500 x 1439 x 133 mm Measurements (HxWxL) Packed size in mm *500 x 1500 x 300 mm HandlingAluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt / Center Mount Yoke Mounting 28 mm Spigot (Junior Pin) Tilt Angle +/- 90° Lamphead Voltage Input 48 V DC Power Consumption 400 W Nominal, 430 W Maximum Lamphead Power Connection Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive) Battery Connector Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive) Battery DC Voltage Range 23 to 36 V DC Battery Mode Light Output 50 % of total output White Light 2,800 K to 10,000 K continuously variable correlated color temperature Colored Light Full RGB+W Color Gamut with Hue and Saturation Control Color Temperature Tolerance +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) Color Rendition CRI Average > 95, TLCI Average > 90 Dimming 0 to 100 % continuous Ambient Temperature Operation -20 to +45° C (-4 to +113° F) Protection Class / IP RatingIII / IP 20 Estimated LED Lifetime (L70)50,000 hours Estimated Color Shift Over Lifetime (CCT)+/- 5 % Power Supply Input Range 110 to 240 V ~, 50/60 Hz Power Supply Output Range 48 V DC Weight in kgapprox. 4 kg |

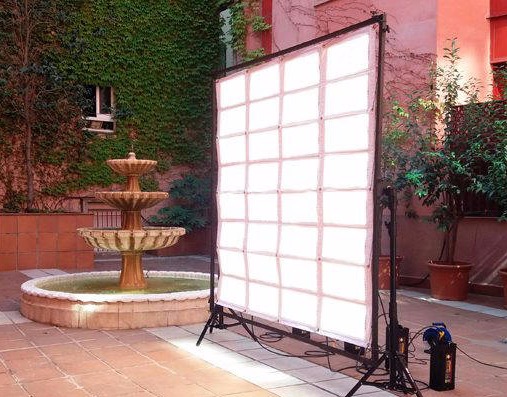

CINE MATT 6'x6' 2065Watt
Bi-COLOR
| Param | Value |
|---|---|
| model name Power consumption Color temperature Beam Angle LampHead voltage input Color Rendition CRI Average Ambient Temperature Operation Power Supply Input Range Dimming | Cine Matt 6'x6' 2065 watt 3000 - 6500K 120° 24V > 95, TLCI Average > 90 -20 to +45° C (-4 to +113° F) 110 to 240 V ~, 50/60 Hz 0 to 100 % continuous |

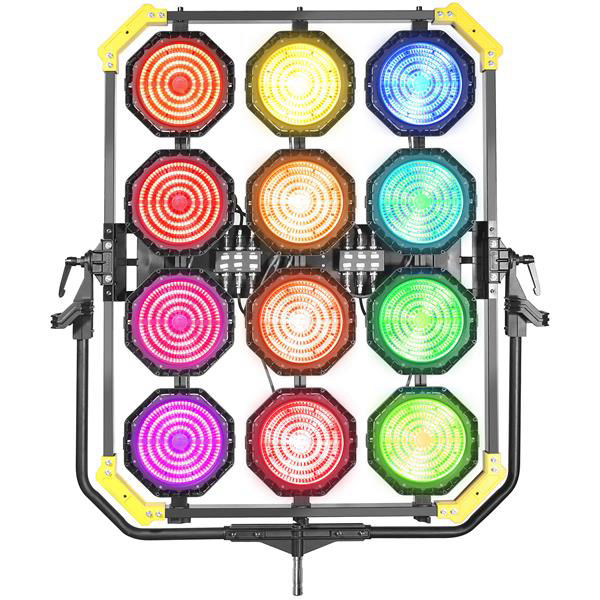

LIGHTSTAR LUXED P12
LUXED-P12 is a 3×4 full RGB and White LED fixture. It has an output power draw of 1920W. Each light column can be panned a few degrees to have control over the beam diameter. For more general infos about the LUXED P series, head over to the overview page.
CCT Range: 2’400 – 10’000 K
Dimming: 0 -100 %
LED Type: RGB WW
CRI: > 95
TLCI: > 97
